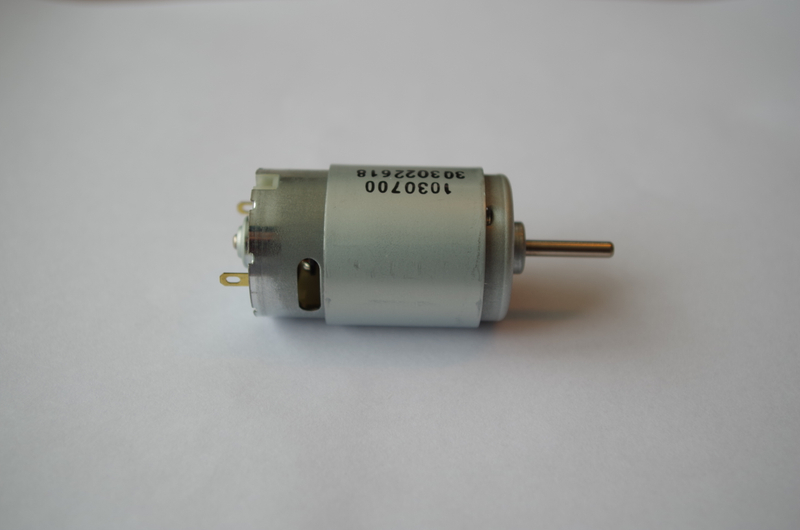

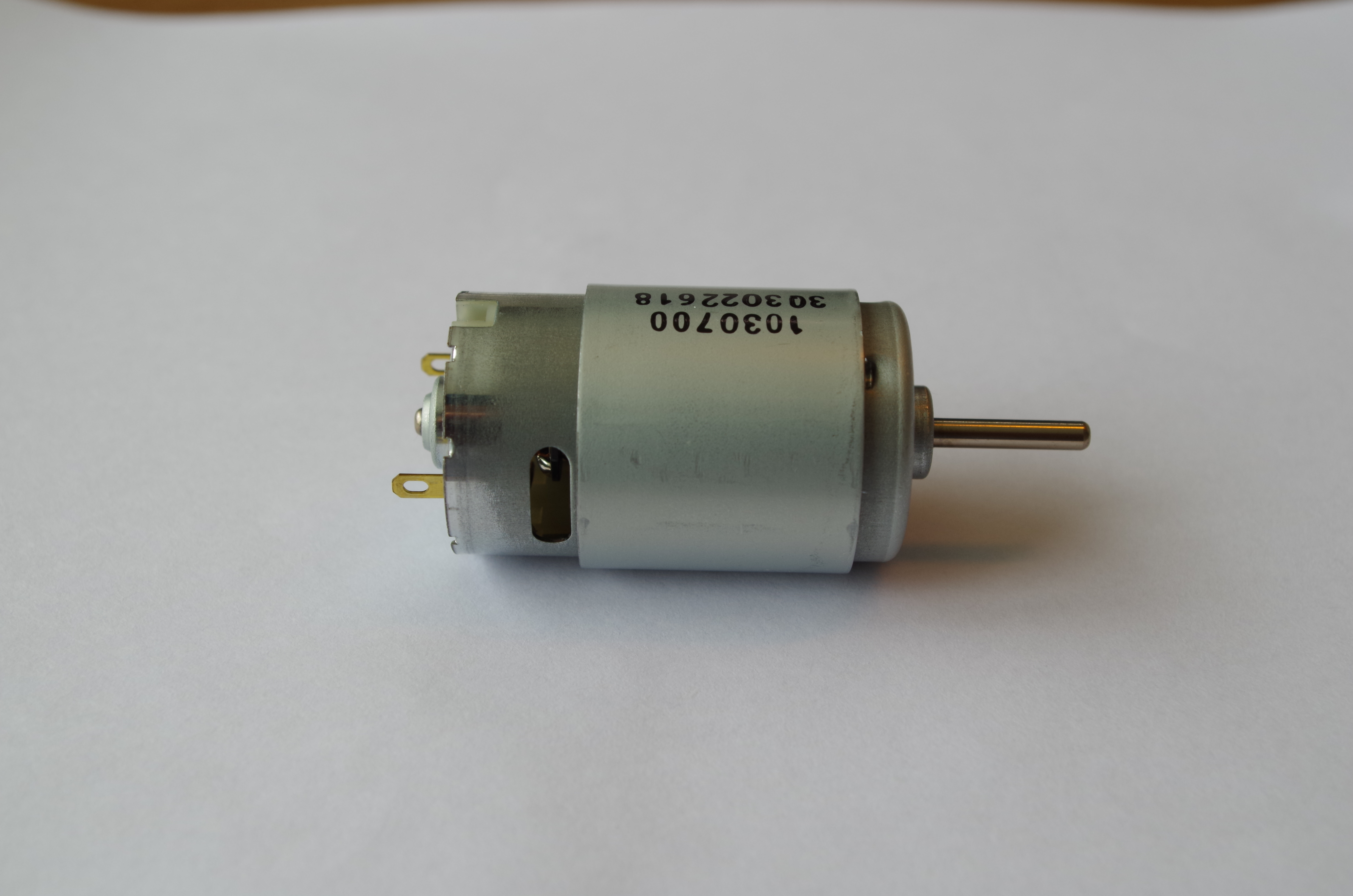

High Power, Long Life PMDC motor

Specifications:

Dimensions : Ø 27.5 X 46.5 mm

Shaft Diameter : Ø 3.175 mm

Input Voltage : 36.0 V DC

No Load Speed : 18250 rpm

Stall Torque : 287.00 mNm

Maximum Output Power : 137.00 W

Maximum Efficiency : 73%

Life (Typical) : 1000 hr

Life Test Condition : (subject to fan load)

Weight : 115 g

perating Temperature Range : -10 to 50 °C

Storage Temperature Range : -20 to 80 °C

Electrcial Connection : Terminals

Certification : RoHS
