Electric iron（2）

The steam spray type electric iron is made by adding a spray system on the basis of the steam type electric iron, which has multiple functions of temperature adjustment, steam injection and spraying. The steam injection system is the same as that of a steam-type electric iron. When the temperature of the soleplate is higher than 100℃, press the spray button, the water control lever opens the drip nozzle, and the water drops into the vaporization chamber to vaporize and spray from the spray hole on the soleplate. Out. The spray device and the steam generating device are independent of each other. Press the spray button by hand, the piston in the spray valve is pressed down, the round steel ball of the valve closes the hole at the bottom of the valve tightly, and the water in the valve is sprayed out of the spray nozzle through the guide hole of the piston rod as a mist; After that, the spray button is automatically reset. Due to the action of the valve, the water in the water storage chamber pushes the round steel ball at the bottom of the valve and enters the valve through the bottom hole.

Mini electric irons, also called travel irons, usually use PTC heating elements, with a size of less than 12 cm and a weight of less than 0.50 kg. The size is generally small and exquisite, easy to carry.

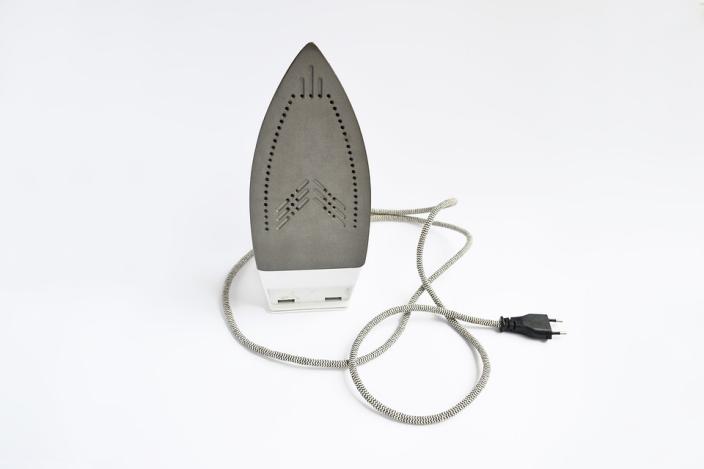

The temperature-regulating steam spray type electric iron is constructed by adding a steam spray device to the ordinary electric iron. It has the dual function of temperature-regulating steam spraying. There are several steam spray holes on the soleplate of this electric iron. A sealed water storage tank is arranged on the soleplate and the heating element. The water inlet of the water storage tank is set at the front end of the handle, the steam outlet pipe and the water storage tank Connected, there is a valve on the steam outlet pipe, and the button on the handle controls the steam injection or stops the steam injection. When the electric heating element is energized to heat the bottom plate, it also heats the water in the water tank, and the water boils and vaporizes to produce steam. The water vapor is ejected from the steam spray hole on the bottom plate through the pipe, so that the clothes to be ironed are moistened by the water vapor. The rear half of the water reservoir is separated from the bottom plate. When steam spraying is not required, the iron only needs to be erected, and the water in the water reservoir will stop heating and save heat.

The temperature-regulating steam spray type is formed by adding an atomizing device to the steam spray type electric iron. In addition to the temperature-regulating steam spray type electric iron, it can also spray water mist on the clothes, which can make thicker clothes fully moist and improve the ironing effect. The structure of the atomization device is to extend the lower part of a capillary tube into the lower part of the water tank and immerse it in water. The upper part of the capillary tube leads to the spray hole with valve. When working, part of the heated water vapor enters the top of the water storage tank through the steam inlet pipe to maintain a certain pressure on the water surface of the water storage tank. When spraying is required, press the spray button switch to open the spray valve and the water vapor passes through the spray The nozzle spouts while the capillary tube sucks up the water.
