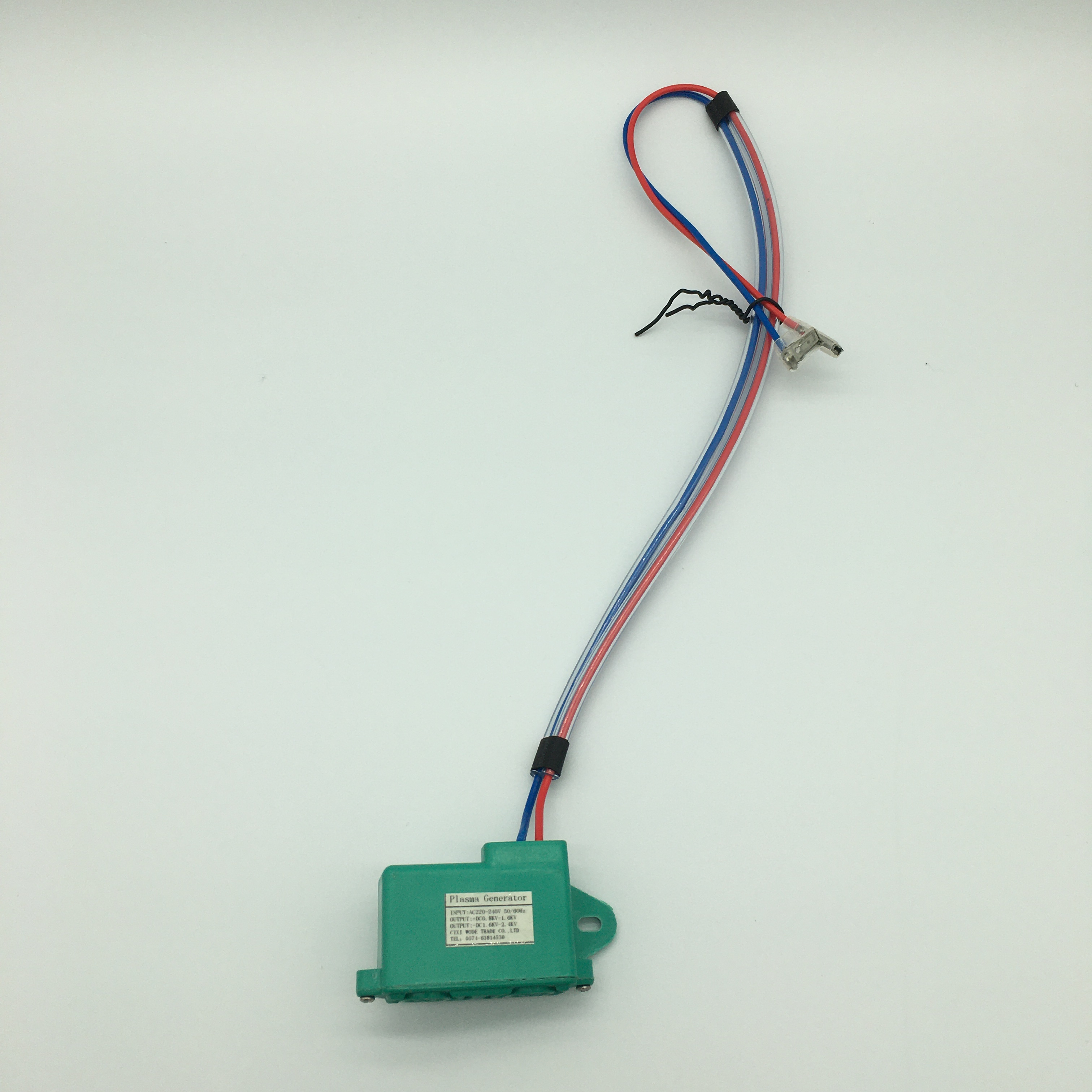

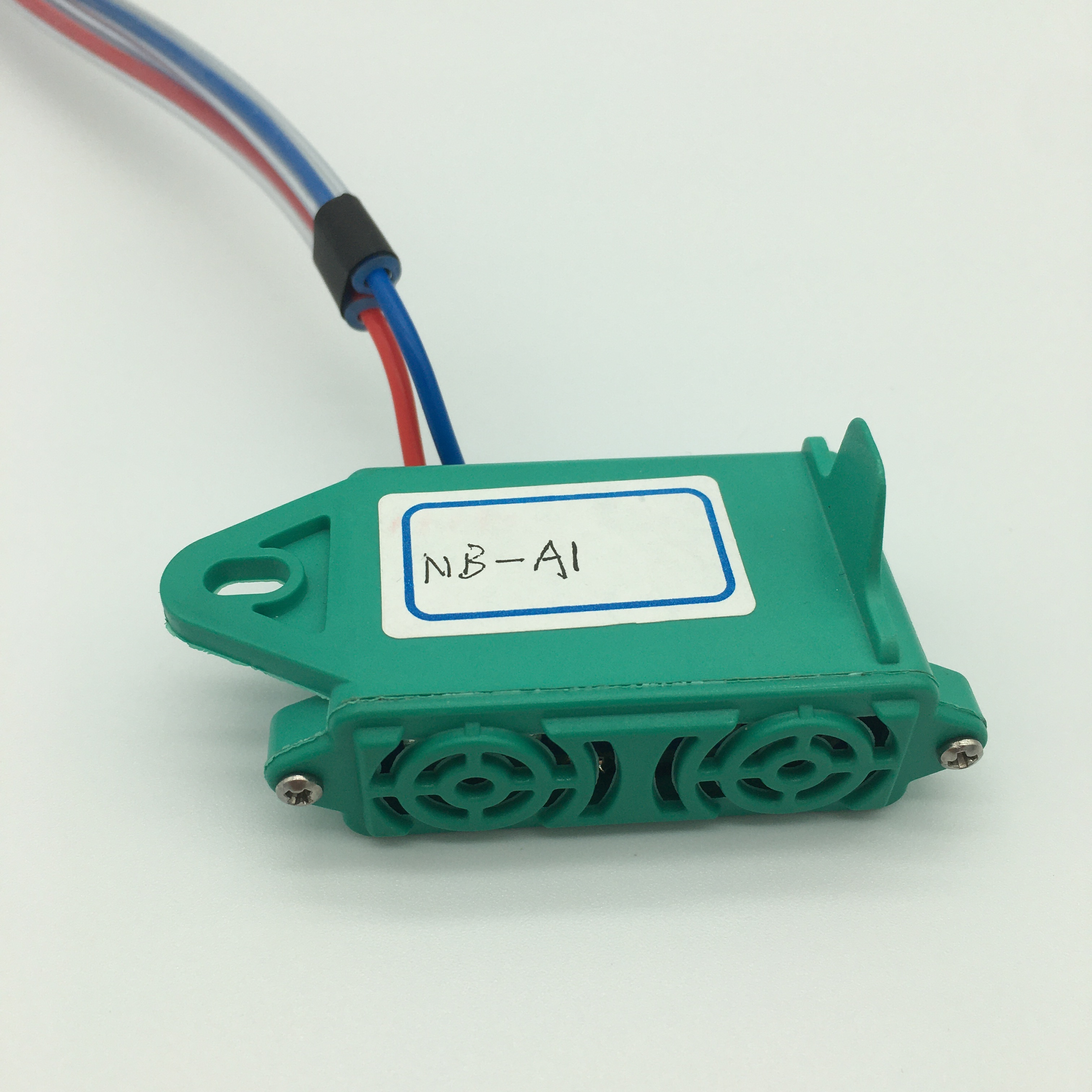

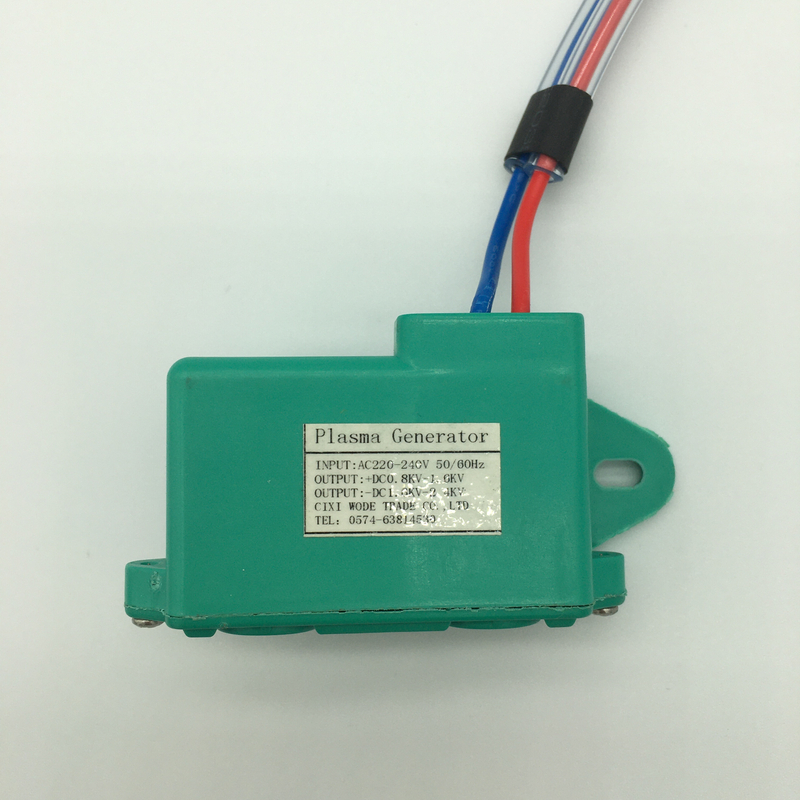

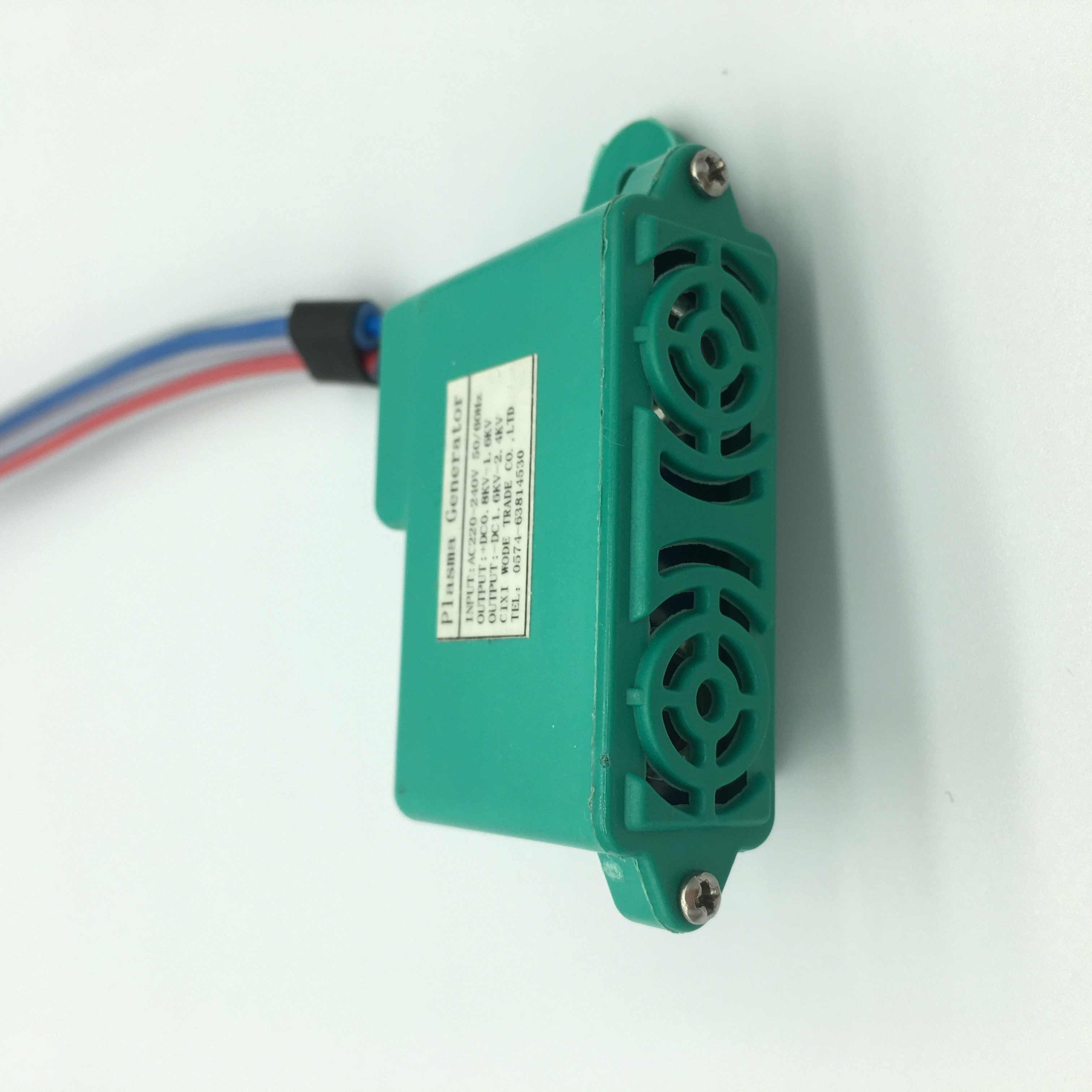

Caterpillar Generator Parts for Household And Car Ozone Generator

Rated voltage :AC220V

Rated current:＜ 10 mA

Output voltage :-DC1.6KV～2.4KV ( Relative Humidity: 55% Temperature:25 0C )

Anion density ≥2.0×10 6PCS/cm 3 (ensured at a distance of 10cm between the anion generator and the measurer) Output voltage +DC0.8KV～1.6KV ( Relative Humidity: 55% Temperature:25 0C )

Anion density ≥1.0×10 6PCS/cm 3 (ensured at a distance of 10cm between the anion generator and the measurer) Electricity resistive intension Power cord opposite to outside box AC3000V 5mA 3S no breakdown

Operating temperature -10℃ ～ +60℃

Storage temperature -20℃ ～ +70℃

Humidity test No electrify status, temp +25℃，RH 93%，place 12 hours, test, work normally.

High temperature test No electrify status, temp +70℃, place 12 hours and then renew to room temp, test, work normally.

Low temperature test No electrify status, temp -20℃、place 12 hours and then renew to room temp, test, work normally.

Dropping test 60cm high from ground, fall freely onto a 3cm timber board，after electrifying, work normally.
